Product Highlights

eSSL-Access-8002

Multidoor Access Control - 2 Door

Category:Door Controller

Features:
Card Capacity : 20,000,
Event buffer : 1,00,000,
Communication : TCP/IP 10M/100M adaptive,
Function Description : Control 2 doors, enter via cards swiping and exit via buttons, or both enter & exit via cards swiping ,
PCB board size : 21.9 * 12.2 * 3.4cm.

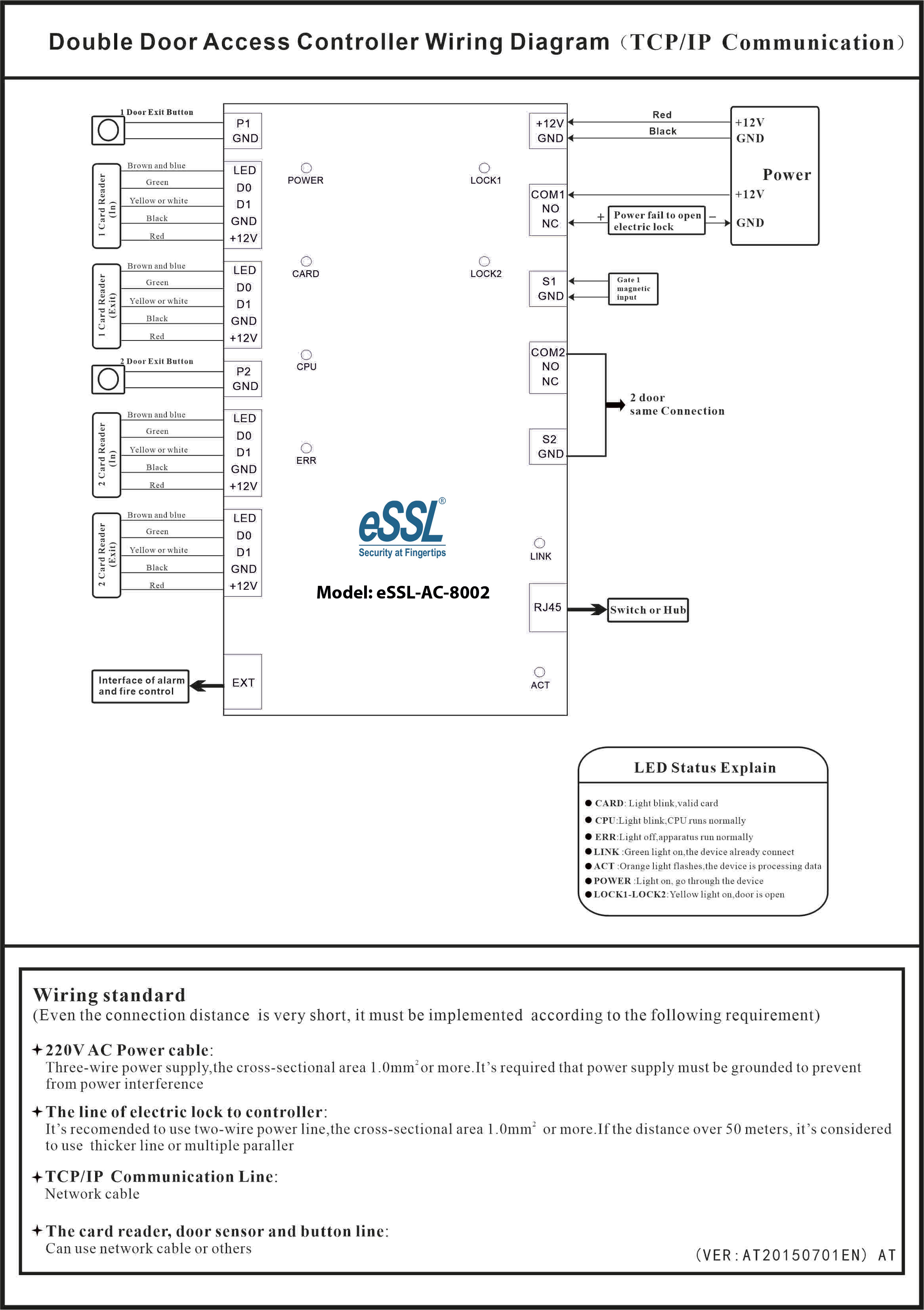

PDF Catalogue installation & Connection

Specifications

Technical Specifications

  • Card Capacity : 20,000
  • Event buffer : 1,00,000
  • Communication : TCP/IP 10M/100M adaptive
  • Function Description : Control 2 doors, enter via cards swiping and exit via buttons, or both enter & exit via cards swiping
  • PCB board size : 21.9 * 12.2 * 3.4cm
  • Controller case size : 273*228*65mm
  • Power supply : 12V DC 4-7A
  • Power consumption of circuit board : < 200mA
  • Reader input format : Wiegand 26/34
  • Card Reader supported : 4 (2 In & 2 Out)
  • Door control output : 4
  • Operation Temperature : -40 °C - 70°C
  • Operation Humidity : 10-90 % RH, No Condensation

Software and Database Supported

  • eSSL Professional Door Control Software
  • Database Type:- MS Access / MS SQL1
